Name: Lenovo AUKP Internal Ethernet 10000 Mbit/s - Nexsys Chile
SKU: 7ZT7A00496
Price: 354.00 USD
Availability: InStock

Tienda Online | Componentes Computadores

| Lenovo AUKP Internal Ethernet 10000 Mbit/s

* Imágenes de referencia

Componentes Computadores

Lenovo AUKP Internal Ethernet 10000 Mbit/s

SKU: 7ZT7A00496

Lenovo AUKP. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black, Green

Host interface: PCI Express
Interface: Ethernet
Maximum data transfer rate: 10,000 Mbit/s
Product colour: Black,Green
Internal: YES
Width: 69 mm
Depth: 168 mm
Height: 15 mm
Ethernet LAN (RJ-45) ports: 2
Operating relative humidity (H-H): 5 – 95
Storage temperature (T-T): -40 – 65
Storage relative humidity (H-H): 5 – 95
Certification: CE/European Union EN60950-1 UL/USA UL60950-1 CTUVus UL Canada: CSA 22.2 No. 950 Taiwan: CNS14336 Class A EN55022:2010 + *AC:2011 Class A EN55024 Class A FCC CFR47, Part 15 Class A Canada: ICES-003 Class A Australia, New Zealand: EN 5022:2010 + *AC:2011 Taiwan: BSMI CNS13438 Class A South Korea: MIC RRL KN22 Class A South Korea: KN24 (ESD) Japan: VCCI V-3 04/2014 EN55024:2010 Air/Direct discharge
Ethernet LAN data rates: 10,100,1000,10000
Networking standards: IEEE 802.3ab,IEEE 802.3an
Cabling technology: 10GBase-T
Jumbo frames support: YES
iSCSI support: YES
Maximum operating distance: 100 m
Harmonized System (HS) code: 85176990

The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring.

This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.

The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.

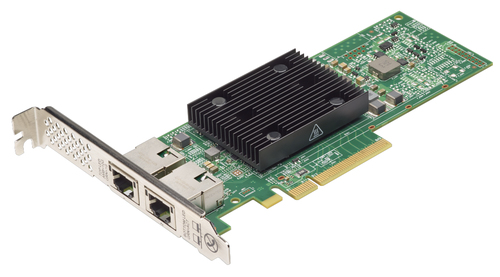

The following figure shows the ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter.
