Certification: Micron Green Standard
Built with sulfur resistant resistors
CE (Europe): EN 55032 Class B, RoHS
UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
FCC: CFR Title 47, Part 15 Class B
UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013
BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663
RCM (Australia, New Zealand): AS/NZS CISPR32 Class B
KC RRA (Korea): approval to KN32 Class B, KN 35 Class B
W.E.E.E.: compliance with EU WEEE directive 2012/19/EC
TUV (Germany): approval to IEC60950/EN60950
VCCI (Japan): 2015-04 Class B
IC (Canada): ICES-003 Class B
Morocco: approval to EN55032/EN55024 Class B
UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139)
Compatible products: ThinkSystem
Hot-swap: YES
Component for: Server/Workstation
SSD form factor: 2.5″
SSD capacity: 480 GB
Mean time between failures (MTBF): 3,000,000 h
Read latency: 170 µs
Write latency: 42 µs
S.M.A.R.T. support: YES
Memory type: 3D TLC NAND
Random read (4KB): 95,000 IOPS
Random write (4KB): 37,000 IOPS
Power consumption (read): 2.5 W
Power consumption (write): 3.1 W
Non-operating shock: 1,500

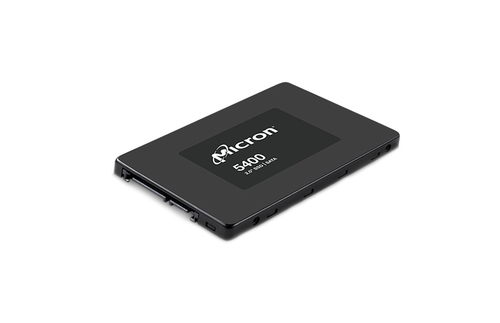

The ThinkSystem 5400 PRO Read Intensive SATA 6Gb SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform and are available in capacities ranging from 240GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the 5400 PRO SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 PRO SSDs and consider their use in IT solutions.
