Certification: UL
TUV
FCC
CE Mark
C-Tick Mark
BSMI (Taiwan)
KCC (Korea EMI)
Component for: Server/Workstation
SSD form factor: 2.5″
SSD capacity: 1,920 GB
Data transfer rate: 6 Gbit/s
Mean time between failures (MTBF): 2,000,000 h
Maximum operating altitude: 3,050 m
S.M.A.R.T. support: YES
Memory type: V-NAND TLC
Random read (4KB): 97,000 IOPS
Random write (4KB): 31,000 IOPS
Non-operating vibration: 20
Hardware encryption: YES
Power consumption (read): 2.2 W
Power consumption (write): 3.2 W
ECC: YES
Non-operating shock: 1,500
End-to-End Data Protection: YES
H/W PLP function: YES
Random latency – read (up to): 120 µs
Random latency – write (up to): 40 µs
Uncorrectable Bit Error Rate (UBER): < 1 per 10^17 bits read
Drive writes per day (DWPD): 1

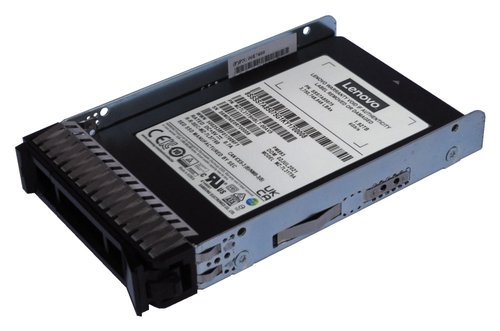

The ThinkSystem CM893a Read Intensive SATA SSDs are general-purpose SSDs that are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. With SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide provides essential presales information to understand the CM893a SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
