| Aruba 6000 48G 4SFP Managed L3 Gigabit Ethernet (10/100/1000) 1U

* Imágenes de referencia

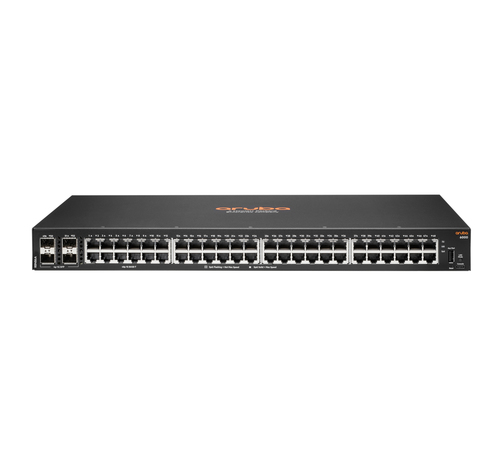

Aruba 6000 48G 4SFP Managed L3 Gigabit Ethernet (10/100/1000) 1U

SKU: R8N86A

Aruba 6000 48G 4SFP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: USB. MAC address table: 8192 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE…. Rack mounting, Form factor: 1U

  • Internal memory: 8,192 MB
  • Width: 442.5 mm
  • Depth: 247.3 mm
  • Height: 44 mm
  • Weight: 3,020 g
  • Quality of Service (QoS) support: YES
  • Power over Ethernet (PoE): NO
  • Operating temperature (T-T): 0 – 45
  • Operating relative humidity (H-H): 15 – 95
  • Storage temperature (T-T): -40 – 70
  • Storage relative humidity (H-H): 15 – 90
  • Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x
  • Auto MDI/MDI-X: YES
  • Power consumption (max): 44.2 W
  • Memory type: DDR3-SDRAM
  • Processor model: ARM Cortex-A9
  • AC input voltage: 100 – 240
  • Rack mounting: YES
  • Jumbo frames support: YES
  • Flow control support: YES
  • AC input frequency: 50 – 60
  • Form factor: 1U
  • Built-in processor: YES
  • Power source: AC
  • Web-based management: YES
  • VLAN support: YES
  • Processor frequency: 1,016 MHz
  • Flash memory: 16,384 MB
  • Switch type: Managed
  • Switch layer: L3
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Console port: USB
  • 10G support: NO
  • Link aggregation: YES
  • Switching capacity: 104 Gbit/s
  • Throughput: 77.3 Mpps
  • MAC address table: 8,192 entries
  • Packet buffer memory: 12.38 MB
  • Access Control List (ACL): YES
  • Multicast support: YES
  • Power supply included: YES
  • Port mirroring: YES
  • Spanning tree protocol: YES
  • Latency (1 Gbps): 1.9 µs
  • DHCP features: DHCP client
  • Stackable: NO
  • Cloud-managed: YES
  • IGMP snooping: YES
  • Authentication: MAC-based authentication
  • IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)
  • IPv4 FIB entries: 256
  • IPv6 FIB entries: 128
  • SFP module slots quantity: 4
  • Harmonized System (HS) code: 85176990
